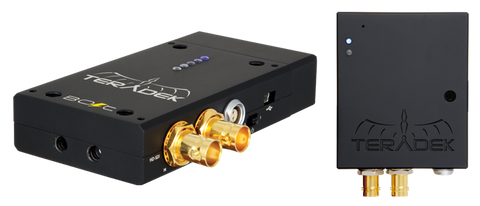

The Teradek Bolt is a zero delay (< 1ms) wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2000ft over the unlicensed 5GHz band. All Bolt models are multicast capable up to 4 receivers, support timecode and metadata pass through, and include the USB 3.0 GRAB Engine.

USB 3.0 GRAB Engine

Capture cards are a thing of the past with Teradek’s new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt’s uncompressed video feed directly into a computer or DIT cart with no added delay.



Bolt Pro 300

The Bolt Pro 300 offers up to 300ft of zero latency wireless video, perfect for focus pullers and director’s monitors. The 300 model comes in HDMI, 3G-SDI, and dual I/O varieties and includes a new fan-less receiver design with internal antennas. Like all Bolt models, the 300 also includes the new USB 3.0 GRAB Engine.

Bolt Pro 600

The Bolt Pro 600 offers all of the same great features of the 300 model, in addition to an OLED screen for quick RX pairing, manual frequency selection, external antennas, and a transmission range of up to 600ft line of sight. Bolt Pro 600 comes in HDMI, 3G-SDI, and dual I/O models.

Bolt Pro 2000

The Bolt Pro 2000 increases the line of sight range all the way up to 2000ft and also comes in HDMI, 3G-SDI and dual I/O models. The 2000 model includes every feature found on the Bolt Pro 600 and can be outfitted with high gain antennas for increased range and resiliency.

Extra Features

All Bolt models support real-time format conversion, allowing you to automatically cross convert from HDMI to 3G-SDI and back without any extra hardware. Each model also outputs a test pattern when the video signal is lost and both the 600 and 2000 models support quick RX pairing via the OLED screen and manual frequency selection.



Technical Specs

Please Select Your Bolt Model:

Bolt Pro 2000

Transmitter Receiver
Video
Video resolution
1080p60/59.94/50/30/29.97/25/24/23.98
1080psf30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480p59.94/576p50 (via HDMI ports only)
480i(NTSC)/576i(PAL)
Color sampling Depends on the input/output types and RX settings; SDI 10-bit with no format conversion and FPGA v.1.1.0 or later; 8-bit color for the rest
Inputs
1 x 75 Ohm BNC
No
1 x Type A receptacle HDMI
Outputs
1 x USB 3.0 micro B receptacle
1 x 75 Ohm BNC(Loop-out) 1 x 75 Ohm BNC
1 x Type A receptacle HDMI
Delay(TX to RX) <0.001sec
Audio
Format support 48kHz 24-bit PCM
Wireless
Frequency
Non-DFS Frequencies:
US : 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
EU & JP : 5.19 ~ 5.23 GHz
DFS Frequencies:
US : 5.27 ~ 5.55 GHz and 5.67 GHz
EU & JP : 5.27 ~ 5.67 GHz
RF power 22dbm EIRP(with two 5dbi TX antennas) 17dbm EIRP(with one 2dbi TX antenna)
Range Up to 2000fts line of sight
Unicast / Multicast Unicast/Multicast Unicast/Multicast
Encryption AES-128
Noise rejection Can coexist with WiFi and 5GHz cordless phones
Power
Input 2-Pin Lemo 7-28 VDC 2-Pin Lemo 7-28 VDC
Internal battery No No
Consumption(1080p60) 7.7 Watts 8.0 Watts
General
LCD screen No Yes
Size 4.3” x 2.6” x 1.0”(109.2 x 66.0 x 26.8 mm) 5.8” x 3.5” x 1.0”(147.3 x 88.5 x 25 mm)
Weight 9.5 oz(270g) 13.8oz(390g)
Firmware Upgrade via Mini-USB
Operating temperature 0 ~ 50 deg-C(need verification)
Chassis material Milled aluminum Milled aluminum
Mountability
Hot-shoe mount Hot-shoe mount
Multiple mounting options with 1/4" holes Multiple mounting options with 1/4" holes

Bolt Pro 600

Transmitter Receiver
Video
Video resolution
1080p60/59.94/50/30/29.97/25/24/23.98
1080psf30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480p59.94/576p50 (via HDMI ports only)
480i(NTSC)/576i(PAL)
Color sampling Depends on the input/output types and RX settings; SDI 10-bit with no format conversion and FPGA v.1.1.0 or later, 8-bit colors for the rest
Inputs
1 x 75 Ohm BNC
No
1 x Type A receptacle HDMI
Outputs
1 x USB 3.0 micro B receptacle
1 x 75 Ohm BNC(Loop-out) 1 x 75 Ohm BNC
1 x Type A receptacle HDMI
Delay(TX to RX) <0.001sec (when no video format conversion is enabled)
Audio
Format support 48kHz 24-bit PCM
Wireless
Frequency
Non-DFS Frequencies:
US : 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
EU & JP : 5.19 ~ 5.23 GHz
DFS Frequencies:
US : 5.27 ~ 5.55 GHz and 5.67 GHz
EU & JP : 5.27 ~ 5.67 GHz
RF power 19dbm EIRP(with two 2dbi antennas) 17dbm EIRP(with one 2dbi TX antenna)
Range Up to 600fts line of sight
Unicast / Multicast Unicast/Multicast Unicast/Multicast
Noise rejection Can coexist with WiFi and 5GHz cordless phones
Power
Input 2-Pin Lemo 7-28 VDC 2-Pin Lemo 7-28 VDC
Internal battery No No
Consumption(1080p60) 7.8 Watts 8.5Watts
General
LCD screen No Yes
Size 4.3" x 2.6" x 1.1"(109.2 x 66.0 x 26.7mm) 5.8” x 3.5” x 1.0”(147.3 x 88.5 x 25 mm)
Weight 9.9oz(282g) 13.3oz(376g)
Firmware Upgrade via Mini-USB
Operating temperature 0 ~ 50 deg-C
Chassis material Milled aluminum Milled aluminum
Mountability
Hot-shoe mount Hot-shoe mount
Multiple mounting options with 1/4" holes Multiple mounting options with 1/4" holes

Bolt Pro 300

Transmitter Receiver
Video
Video resolution
1080p60/59.94/50/30/29.97/25/24/23.98
1080psf30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
480p59.94/576p50 (via HDMI ports only)
480i(NTSC)/576i(PAL)
Color sampling Y:Cb:Cr = 4:2:2, 8-bit for SDI (10-bit with no format conversion and FPGA v.1.1.0 or later); RGB 4:4:4 (HDMI out, 8-bit color)
Inputs
1 x 75 Ohm BNC
No
1 x Type A receptacle HDMI
Outputs
1 x USB 3.0 micro B receptacle
1 x 75 Ohm BNC(Loop-out) 1 x 75 Ohm BNC
1 x Type A receptacle HDMI
Delay(TX to RX) <0.001sec (when no video format conversion is enabled)
Audio
Format support 48kHz 24-bit PCM
Wireless
Frequency
Non-DFS Frequencies:
US : 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
EU & JP : 5.19 ~ 5.23 GHz
DFS Frequencies:
US : 5.27 ~ 5.55 GHz and 5.67 GHz
EU & JP : 5.27 ~ 5.67 GHz
RF power 17dBm EIRP 15dBm EIRP
Range Up to 300fts line of sight
Unicast / Multicast Unicast/Multicast Unicast/Multicast
Noise rejection Can coexist with WiFi and 5GHz cordless phones
Power
Input 2-Pin Lemo 7-28 VDC 2-Pin Lemo 7-28 VDC
Internal battery No No
Consumption(1080p60) 6.5 Watts 8.2Watts
General
LCD screen No No
Menu joystick No Yes
Size 1.06x2.61x4.42inches(27.0x66.1x112.3mm) 1.0x3.5x5.8inches(25.2x88.9x146.5mm)
Weight 9.2oz(262g) 12.2oz(346g)
Firmware Upgrade via Mini-USB
Operating temperature 0 ~ 50 deg-C(need verification)
Chassis material
Cap:Plastic Cap:Plastic
Boday:Milled aluminum Boday:Milled aluminum
Mountability
Hot-shoe mount Hot-shoe mount
Multiple mounting options with 1/4" holes Multiple mounting options with 1/4" holes
