Teradek, LLC - Wireless HD Video



Bond II - From Land, Sea, and Air from Teradek on Vimeo.

The Teradek Bond line of cellular bonding solutions allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, WiFi, BGAN, and Ethernet*. Bond devices utilize hardware-based high profile H.264 compression, resulting in very low power consumption and long run times. Each bonding solution offers a local monitoring capability on iOS devices, Closed Captioning support, and IFB for communication from the studio to the field. All Bond devices require a Sputnik server, which converts each bonded feed into a standard video format that can be sent to any streaming platform on the Web or to many H.264 decoders.

*WiFi and Ethernet bonding requires a compatible USB adapter

Bond: Camera-Top Bonding Module

The original Bond is a hardware module that can be added to existing Cube encoders for live HD broadcasting over several bonded network connections. The Bond module is compatible with all current Cube models and is connected via USB.

Bond Pro: Integrated Camera-Back H.264 Cellular Bonding Solution

Bond Pro is a new integrated camera-back HD H.264 bonded cellular solution designed specifically for broadcast cameras with Gold-mount or V-mount power systems. Bond Pro’s modular design and ease of use make it a simple addition to any broadcast rig. Its light weight and low power consumption allows cameramen to quickly maneuver within tight spaces and broadcast live for long periods without interruption or fatigue. The device comes with an HD-SDI input and HD-SDI loop. This new design also provides support for up to 6 simultaneous cellular network connections via USB dongles. Additionally, Bond Pro offers the same updated modem mounting option as Bond II, which ensures your cellular dongles are protected from aggressive handling. When the situation calls for nimble movement and extended broadcast times, Bond Pro delivers the most empowering bonding solution for ENG professionals.

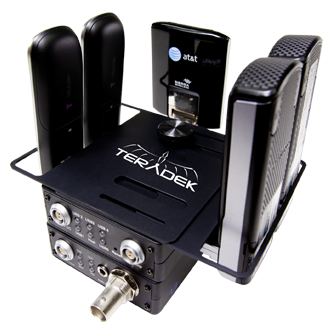

Bond II: Integrated Camera-Top H.264 Cellular Bonding Solution

Bond II is an exciting addition to the award-winning Bond camera-top cellular mux family. Bond II was designed to function as an efficient and portable bonding solution that excels in time sensitive situations and challenging environments with minimal maneuverability. Its compact size, light weight, and low power consumption combined with its cost-effective price make Bond II an unbeatable value for broadcasters. Bond II comes with a built-in HD H.264 encoder, HD-SDI or HDMI input, 6 USB slots for 3G/4G/LTE modems, and requires fewer cables than the original Cube + Bond system. Additionally, Bond II offers a flexible new modem mounting option that ensures your cellular dongles are protected from aggressive movement.

Send Your Content Anywhere

Teradek Bond devices allow you to transmit your live HD content directly to the Internet or to multiple decoders located worldwide. Bond’s revolutionary Adaptive Internet Streaming technology constantly adjusts the video bit rate in real time to adapt to varying network conditions. This will ensure that your content is delivered reliably and at the highest quality possible to its destination.

Sputnik Server

Sputnik is Teradek’s free software application between Bond and your streaming destination. Sputnik is designed to run on a Linux computer either in the cloud (using Amazon EC2) or on a local server with a single, publicly addressable TCP port. The software recombines the packets from your cellular modems into a cohesive stream that can be sent to an H.264 decoder or viewed online.

Compact & Affordable

The Bond, Bond II, and Bond Pro are the smallest and most cost-effective cellular bonding solutions on the market today. Despite its industry leading design and features, Bond is very affordable, which opens the doors for anybody to go live from any location with adequate cellular coverage.

Base: Turnkey Sputnik Server & Decoder

Base is an integrated link aggregation and H.264 decoding solution for video broadcasts transmitted over the Teradek Link or Bond. As an alternative to an Amazon EC2 instance or building your own Linux server, Base de-bonds and decodes your video feed from a single rack mount server with an HD-SDI output.

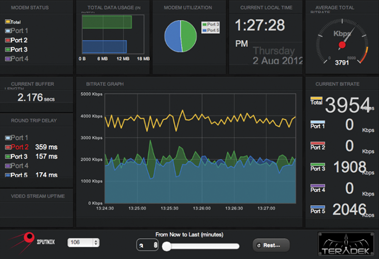

Dashboard

The Teradek Dashboard is a web GUI for monitoring the performance of your Bond system. Dashboard displays the bit rate and latency per modem, total data usage, modem status, buffer length, and many other statistics to help you keep track of your streaming performance in real time.

Core™ Integration

Core is Teradek's cloud-based encoder fleet management system that integrates with Sputnik. From an intuitive Web GUI, users are provided with extensive control over many parameters of connected Teradek IP video devices. Core also offers a unique drag and drop workflow that allows you to direct video feeds from any encoder to any number of decoders in real time.

Adaptive Bit Rate Streaming

Bond features Teradek's novel Adaptive Bit Rate Streaming (ABRS) technology, which dynamically adjusts the video bit rate and buffer of your stream in real time to adapt to varying network conditions. ABRS ensures that your content is delivered reliably and at the highest quality possible.

Adaptive Frame Rate Streaming

Bond's Adaptive Frame Rate Streaming feature was designed to ensure that your live video reaches its destination at any cost. If cellular service at your location suddenly drops to levels that are too slow to transmit an HD quality video, the AFRS feature will begin to drop the frame rate until your content reaches its destination in tact. This feature is ideal for breaking news coverage where successful video transmission is imperative at any cost.
